TTO

Puction Highlight

• Cost Saving

20mm to 50mm ultra wide ribbon to optimize ribbon usageWith Format Designer software; has the function of auto ribbon optimizationPatented ribbon with saving function to reduce ribbon wasteLow-cost 32mm TPH for option, which meets the demand of less-than-35mm ribbon usageMax.1100-meter ribbon with less replacement to save printing cost

• Optimize Operation

Obtain availability, ribbon status and broken dots detection at real timeStandard 1100-meter ribbon brings longer running timeSmart data input function makes working management more convenient and safer so as tominimize errors

With simple information design software “Format Designer"

• High Reliability

Cost-effective TPH warranty service

Solid and reliable structure: without any quick-wear parts in ribbon cassette designHigh time availabilityIP protection options for harsh environmental conditions and high-pressure watering

•  Highly Efficient Print

Imported smart TPH, with the function of auto setting and broken dots detection to ensurebest print qualityEach package can have the exclusive coding

Print speed up to 600mm/s

High resolution of 300dpi

• Eco-Friendly

Pint at 2.5 bar pressure, and the loss of compressed air for each printing is as low as 0.4mlPower consumption has decreased 50%New standard ribbon design reduce 20% of ribbon wastePower-saving function of controller improves the energy efficiency

Structure:All-metal structure

Printing Method:Thermal transfer printing

Resolutlon:300 dpi (12 dots/mm)

Printing speed:40-600mm/s

Printing wldth:40-600mm/s

Print Area:53mm*75mm (Intermittent), 53mm*100mm (Continuous)

Processor:32-bit RSIC processor

Flash Memory:8MB (minimum)

Dynamic Memory:16MB (minimum)

Real-time Clock Functlon:STD, battery discharge life is at least 3 years

Sensor:Ribbon tension detection; thermal head position detection; cover open detection; TPH over temperature detection; ribbon break detection"

Flexlble Packaging inspectlon:Electromagnetic induction or synchronizer

Flexlble Packaging Materlals:PVDC, PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, CPP, PE,

VMPET, VMCPP and other films and composite films"

Rlbbon capaclty:1” mandrel with a maximum length of 1100 meters

Rlbbon Type:Type: Wax / Resin；Resin width: 20 mm (0.79 ") to 55 mm (2.17")

Rlbbon saving:Support interlaced, radial, multiple print signals, digital ribbon saving printing, ribbon back and other ribbon saving modes；The minimum ribbon interval; between two lines of printing is not more than 0.5mm"

Alr supply:Max. 6 bar/90 psi

Alr Consumptlon:As low as 4 ml / print at 2.5 bar

Print Denslty Level:Level 31

USB Maln interface:STD, 1 port, type B connector, USB device 2.0

Serlal Port:STD 1 port, female D-SUB 9-pin connectorDefault 9600, 8/N/1, variable baud rate and format

Ethernet interface:STD 1 port, RJ-45 connector, IEEE802.3 10/100BASE-T

Hardware interface Port:Input: "Print Start" and a configurable input ; Outputs: fault, warning and 2 configurable outputs

Power supply:Internal switching power supply module, I / P: AC90V-264V, 47/63 Hz;

Software:HPRT Format Designer

Certlflcation:CCC

Envlronmental Conditions:Operation: 0 to 40 ℃ @ humidity 10% to 90% non-condensing.Storage: -40 to 60 ℃ @ humidity 10% to 90% non-condensing

Machine Dlmension:Printer: height less than 190 mm, width less than 220 mm, depth less than 236 mm.Controller: height less than 170 mm, width less than 263 mm, depth less than 190 mm

Machine welght:Printer: less than 8 kg ；Controller: less than 5 kg

Warranty:Printer: 3 years ; Controller: 3 years ;Thermal head: 6 months or 50 KM；Platen: 5 years

Application

Suitable for

food, medicine, daily chemical, household paper and other types of flexible packaging variable code (including traceability code, barcode) printing

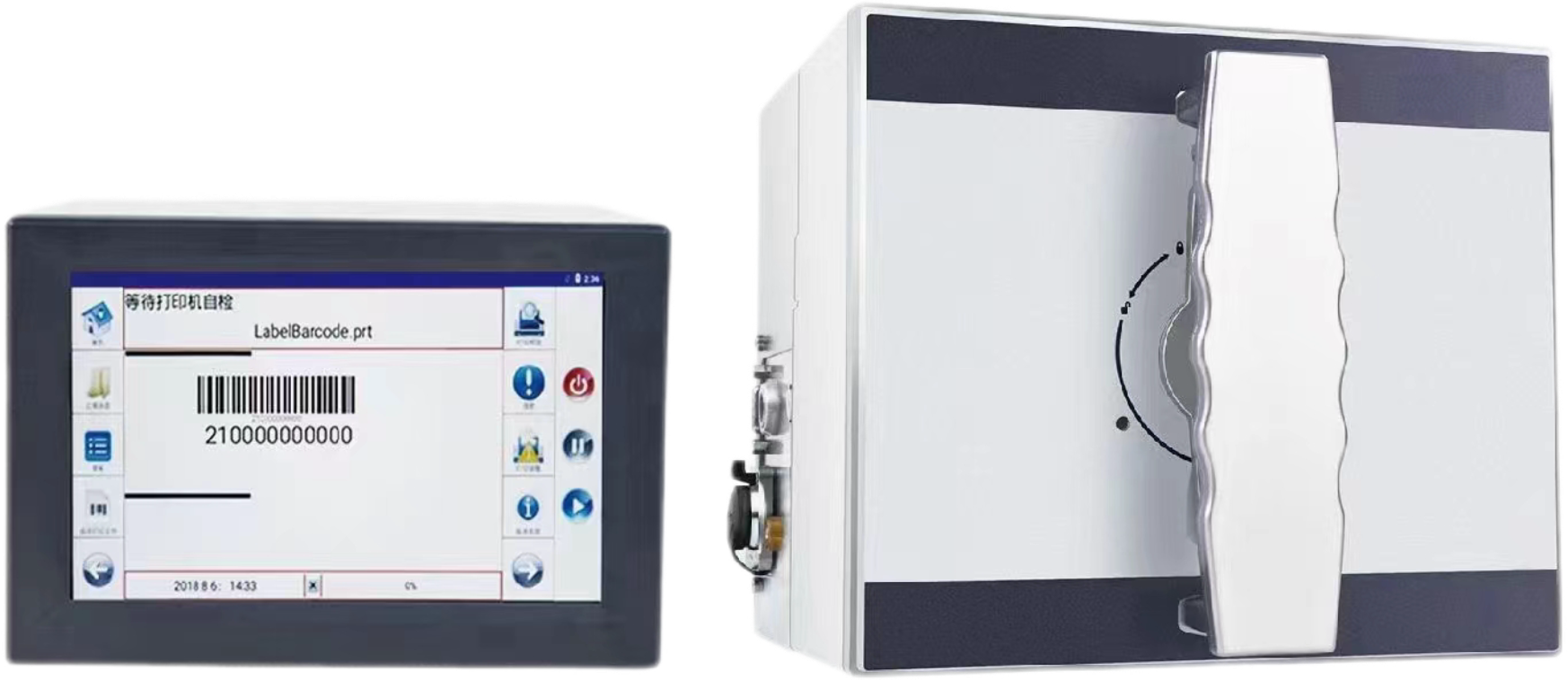

Printer&Controller
